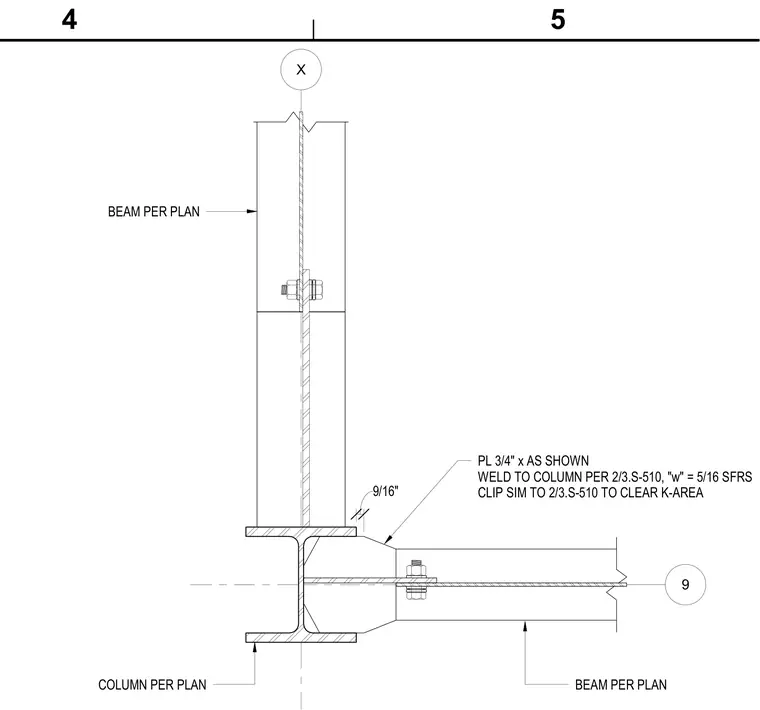

A structural steel beam connects to a steel column using a three-quarter-inch plate welded to the column with a five-sixteenth-inch fillet weld configured to clear the k-area. A secondary beam frames in above with a bolted shear tab connection. The assembly is detailed for special frame moment connections or gravity framing per plan.
9 X 9/16" PL 3/4" x AS SHOWN WELD TO COLUMN PER 2/3.S-510, "w" = 5/16 SFRS CLIP SIM TO 2/3.S-510 TO CLEAR K-AREA BEAM PER PLAN COLUMN PER PLAN BEAM PER PLAN 4 5
