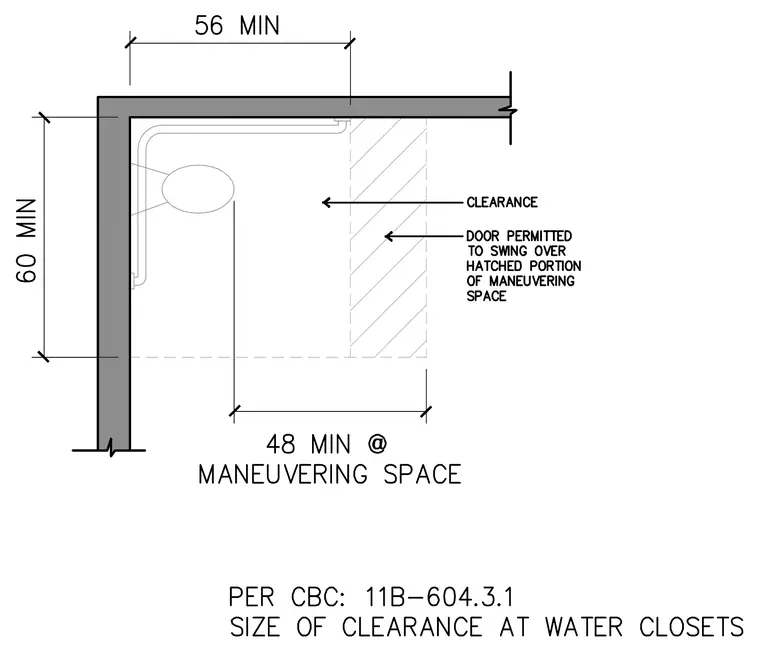

An accessible water closet compartment plan details the required minimum clearances and maneuvering space per CBC 11B-604.3.1. The layout establishes a minimum fifty-six inches by sixty inches clearance area around the water closet. A hatched portion of the maneuvering space indicates where a door is permitted to swing over.
