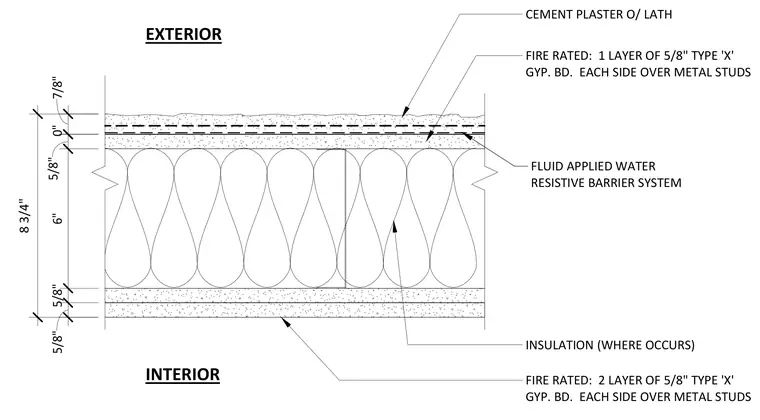

This two-hour exterior wall assembly consists of cold-formed steel metal studs with optional cavity insulation between them. The exterior side features a fluid-applied water-resistive barrier system finished with cement plaster over lath. The interior side is finished with two layers of 5/8-inch Type X gypsum board, while the exterior side incorporates one layer of 5/8-inch Type X gypsum board over the metal framing.
INSULATION (WHERE OCCURS) FIRE RATED: 1 LAYER OF 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUDS 7/8" 0" 5/8" 6" 5/8" 5/8" FIRE RATED: 2 LAYER OF 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUDS 8 3/4" EXTERIOR INTERIOR FLUID APPLIED WATER RESISTIVE BARRIER SYSTEM CEMENT PLASTER O/ LATH
