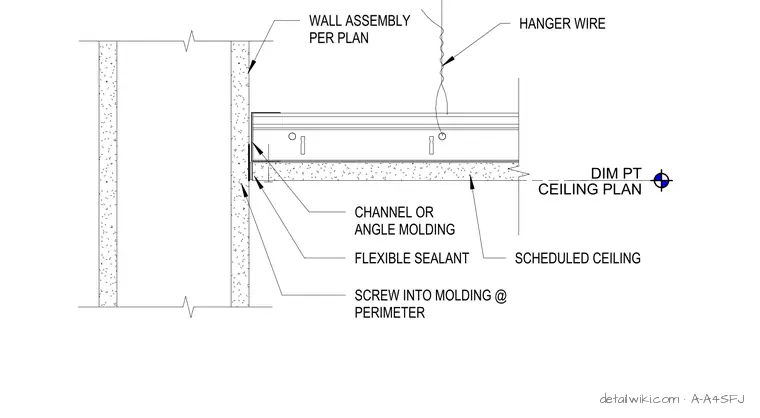

A hanger wire supports the suspended ceiling assembly from the ceiling grid. A channel or angle molding at the perimeter receives screws securing the ceiling assembly. A bead of flexible sealant fills the gap between the ceiling edge and the wall assembly, which is constructed per the project plans. The ceiling finish is a scheduled gypsum board ceiling.
