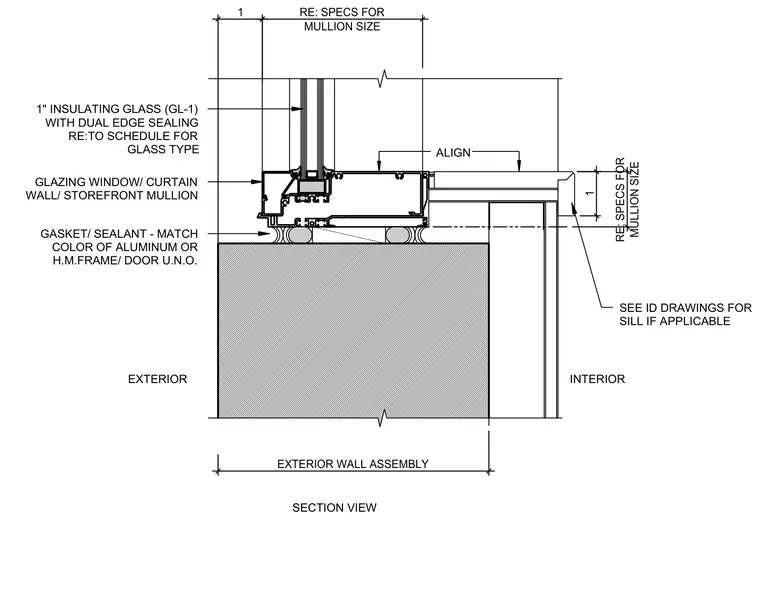

An aluminum storefront mullion supports a one-inch insulating glass unit with dual edge sealing over the exterior wall assembly. Gasket and sealant match the color of the aluminum unless noted otherwise. The interior finish aligns with the storefront frame as indicated in interior design drawings.
EXTERIOR ALIGN INTERIOR SECTION VIEW EXTERIOR WALL ASSEMBLY GASKET/ SEALANT - MATCH COLOR OF ALUMINUM OR H.M.FRAME/ DOOR U.N.O. 1" INSULATING GLASS (GL-1) WITH DUAL EDGE SEALING RE:TO SCHEDULE FOR GLASS TYPE GLAZING WINDOW/ CURTAIN WALL/ STOREFRONT MULLION SEE ID DRAWINGS FOR SILL IF APPLICABLE 1 RE: SPECS FOR MULLION SIZE 1 RE: SPECS FOR MULLION SIZE
