This wall base assembly features a stucco weep screed with drain holes positioned a minimum of four inches above grade. A fluid-applied weather-resistive barrier and Tyvek Commercial Wrap D separator sheet run down the face of the framing. Perm-A-Barrier Ultra self-adhered flashing integrates with a stainless steel base of wall flashing that extends a minimum of two inches past the sill. The assembly terminates at the foundation with a sealant joint over a compressible fill.

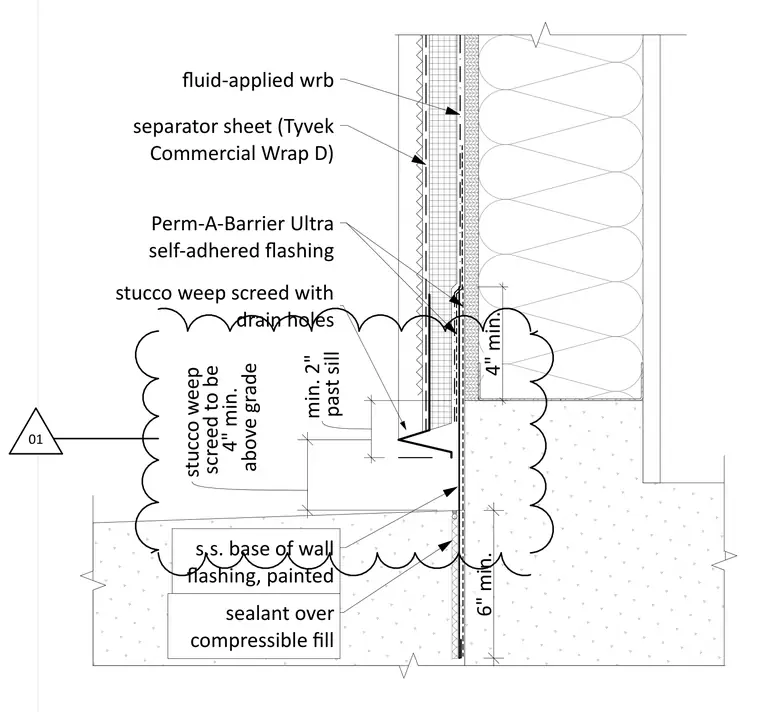

min. 2" past sill 4" min. 6" min. stucco weep screed to be 4" min. above grade stucco weep screed with drain holes fluid-applied wrb separator sheet (Tyvek Commercial Wrap D) Perm-A-Barrier Ultra self-adhered flashing s.s. base of wall flashing, painted sealant over compressible fill 01
