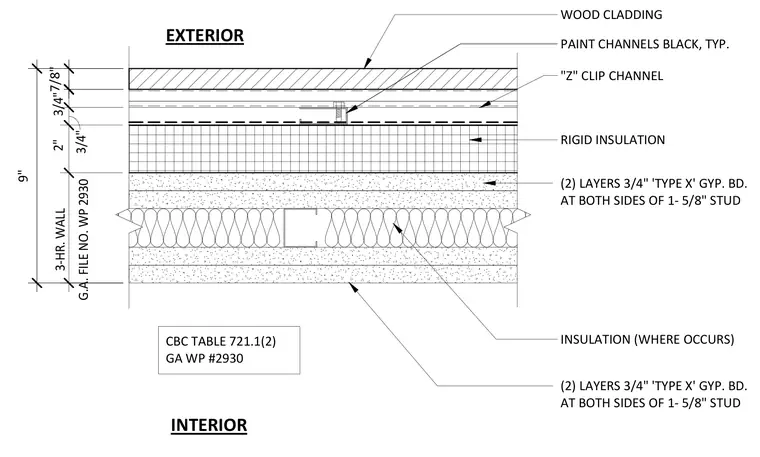

This wall assembly is rated for three hours and features exterior wood cladding attached over Z-clip channels with black-painted channels. Rigid insulation fills the exterior layer, while the core consists of one-and-five-eighths-inch steel studs insulated with batt insulation where required. Both sides of the stud framing are finished with two layers of three-quarter-inch Type X gypsum board. The overall assembly thickness is nine inches and conforms to CBC Table 721.1(2) GA WP #2930.
INSULATION (WHERE OCCURS) 3/4" 3/4" 2" G.A. FILE NO. WP 2930 3-HR. WALL WOOD CLADDING EXTERIOR INTERIOR "Z" CLIP CHANNEL RIGID INSULATION 7/8" CBC TABLE 721.1(2) GA WP #2930 (2) LAYERS 3/4" 'TYPE X' GYP. BD. AT BOTH SIDES OF 1- 5/8" STUD (2) LAYERS 3/4" 'TYPE X' GYP. BD. AT BOTH SIDES OF 1- 5/8" STUD 9" PAINT CHANNELS BLACK, TYP.
