Architectural · A-A4A83

Window Head and Stucco Soffit Detail at Steel Beam

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Beams Windows Ceilings

Connections

Welded Connection Timber / Mass-Timber Connection

About this detail

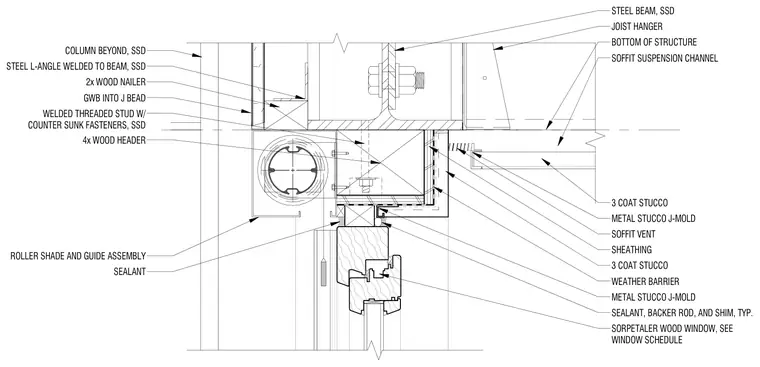

A structural steel beam supports the overhead floor assembly, with a joist hanger connecting adjacent framing and a steel L-angle welded to the beam flange. Below the beam, a 4x wood header and a 2x wood nailer anchor the roller shade and guide assembly. Gypsum wallboard terminates into a J-bead secured with welded threaded studs and countersunk fasteners. The exterior assembly features sheathing covered by a weather barrier and a three-coat stucco finish with metal stucco J-molds at the termination points. A ventilated soffit system ties into the stucco assembly adjacent to the Sorpetaler wood window, which is sealed with perimeter sealant, backer rods, and shims.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
