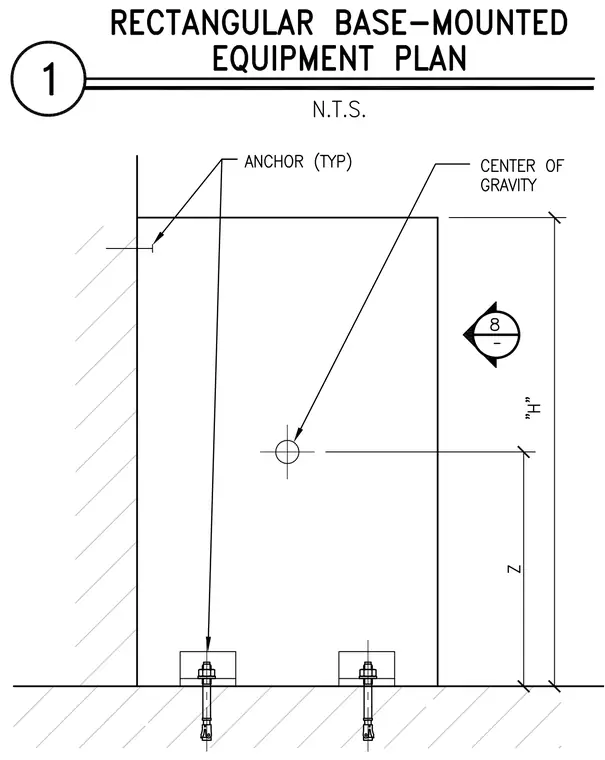

A rectangular base-mounted equipment unit is secured with typical anchors to a supporting floor and wall assembly. The drawing indicates the vertical height dimension denoted as H and the center of gravity height denoted as Z. Typical anchors secure the base to the mounting surface while detail reference callouts point to related installation information.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
