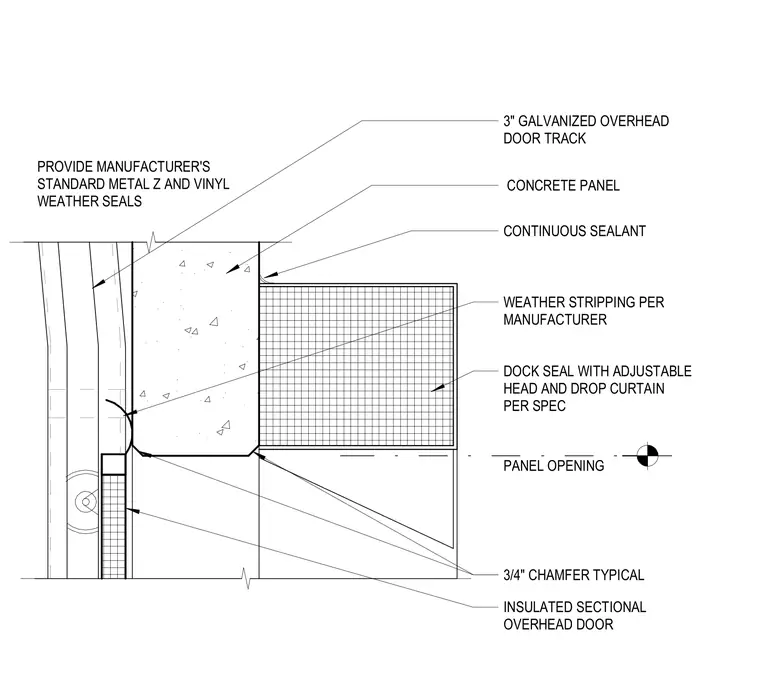

This assembly details the jamb condition for an insulated sectional overhead door at a concrete panel opening. A three-inch galvanized overhead door track is mounted adjacent to the panel, which features a three-quarter-inch typical chamfer at the opening edge. Weather protection is provided by manufacturer-standard metal Z and vinyl weather seals, supplemented by continuous sealant at the panel interface. A dock seal with an adjustable head and drop curtain is installed per specifications, with additional weather stripping applied according to the manufacturer's requirements.
Text on the drawing
PANEL OPENING CONCRETE PANEL CONTINUOUS SEALANT DOCK SEAL WITH ADJUSTABLE HEAD AND DROP CURTAIN PER SPEC 3/4" CHAMFER TYPICAL INSULATED SECTIONAL OVERHEAD DOOR WEATHER STRIPPING PER MANUFACTURER PROVIDE MANUFACTURER'S STANDARD METAL Z AND VINYL WEATHER SEALS 3" GALVANIZED OVERHEAD DOOR TRACK
