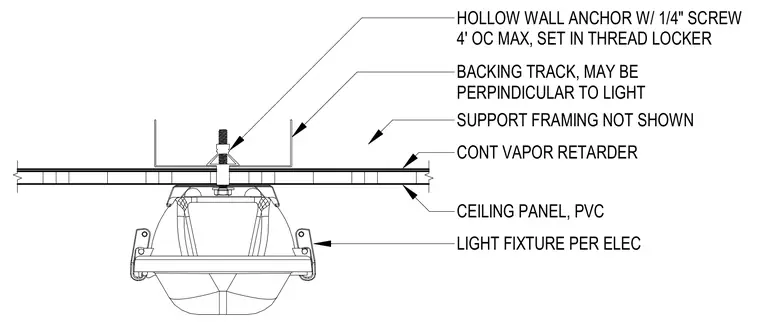

A light fixture is suspended below a PVC ceiling panel and a continuous vapor retarder, secured by a PVC hollow wall anchor with a one-quarter-inch screw spaced at four feet on center maximum and set in thread locker. The anchor ties back to a backing track that may run perpendicular to the light fixture, supported by framing that is not shown in the assembly.
LIGHT FIXTURE PER ELEC CEILING PANEL, PVC HOLLOW WALL ANCHOR W/ 1/4" SCREW 4' OC MAX, SET IN THREAD LOCKER CONT VAPOR RETARDER SUPPORT FRAMING NOT SHOWN BACKING TRACK, MAY BE PERPINDICULAR TO LIGHT
