Lock rod sockets are spaced ten feet on center with an eight-inch clear dimension per manufacturer requirements.

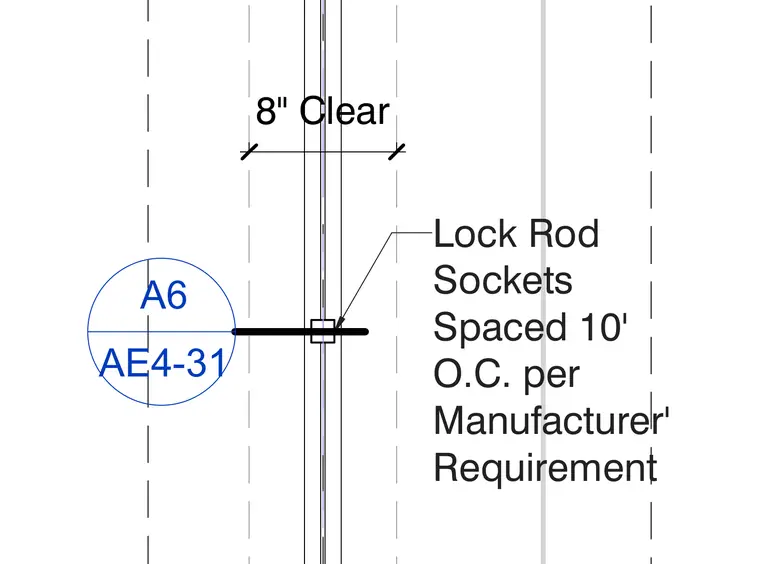

8" Clear Lock Rod Sockets Spaced 10' O.C. per Manufacturer' Requirement A6 AE4-31
