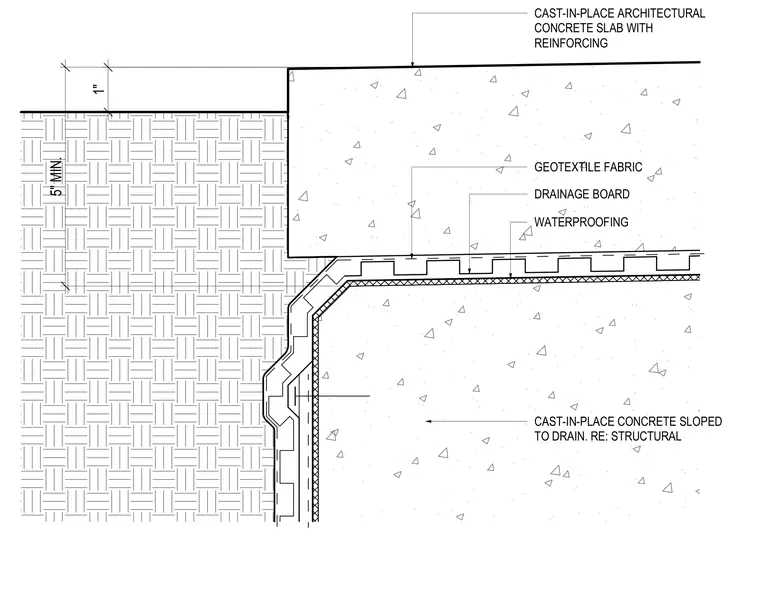

The assembly features a cast-in-place architectural concrete slab with reinforcing, set adjacent to a structural cast-in-place concrete slab sloped to drain with a minimum thickness of 5 inches and a 1-inch step. Waterproofing is applied directly to the concrete surface, protected by a drainage board and geotextile fabric.
GEOTEXTILE FABRIC DRAINAGE BOARD WATERPROOFING CAST-IN-PLACE CONCRETE SLOPED TO DRAIN. RE: STRUCTURAL CAST-IN-PLACE ARCHITECTURAL CONCRETE SLAB WITH REINFORCING 5" MIN. 1"
