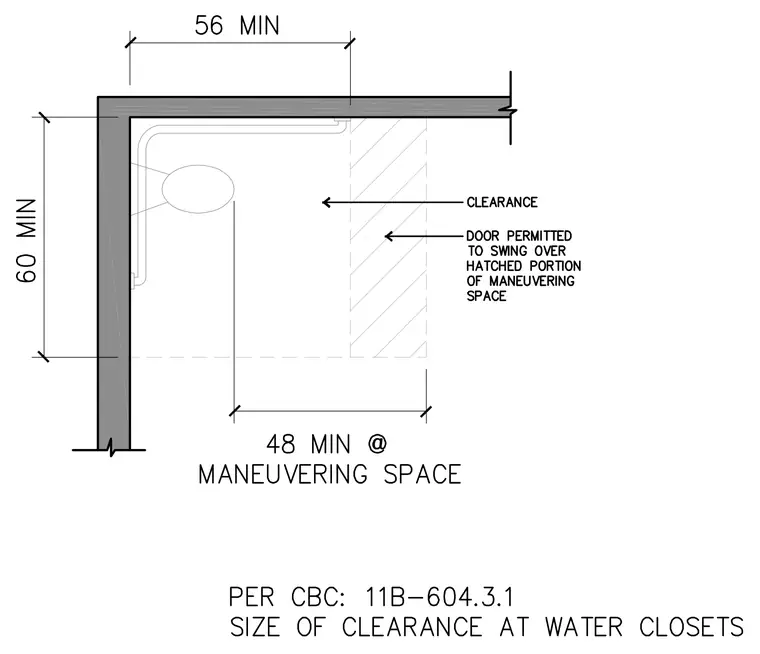

An accessible water closet installation requires a minimum clearance of fifty-six inches by sixty inches. A maneuvering space of forty-eight inches minimum is provided alongside the fixture. A door is permitted to swing over the hatched portion of the maneuvering space as regulated by CBC section 11B-604.3.1.
