Mechanical · A-A3CPK

Cooling Coil - Two Way

Elements

About this detail

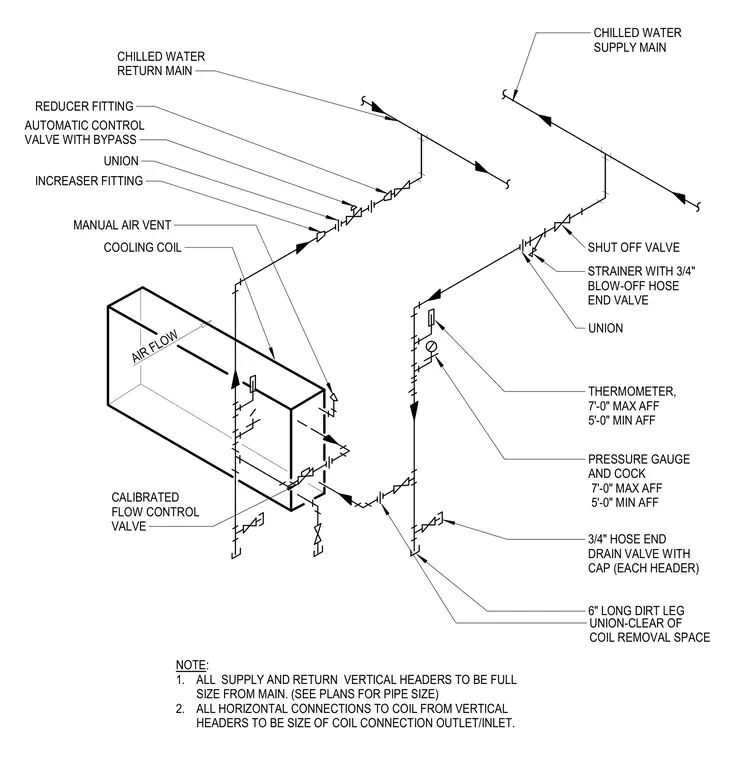

Chilled water supply and return mains connect to a cooling coil through vertical headers sized per plan. The supply line incorporates a shut-off valve, a strainer with a three-quarter inch blow-off hose end valve, a union, a thermometer mounted between five and seven feet above finished floor, and an automatic control valve with a bypass and reducer/increaser fittings. The return line features a calibrated flow control valve, a pressure gauge and cock, unions, and a manual air vent. Each header terminates in a six-inch long dirt leg and a three-quarter inch hose end drain valve with cap, positioned clear of the coil removal space.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
