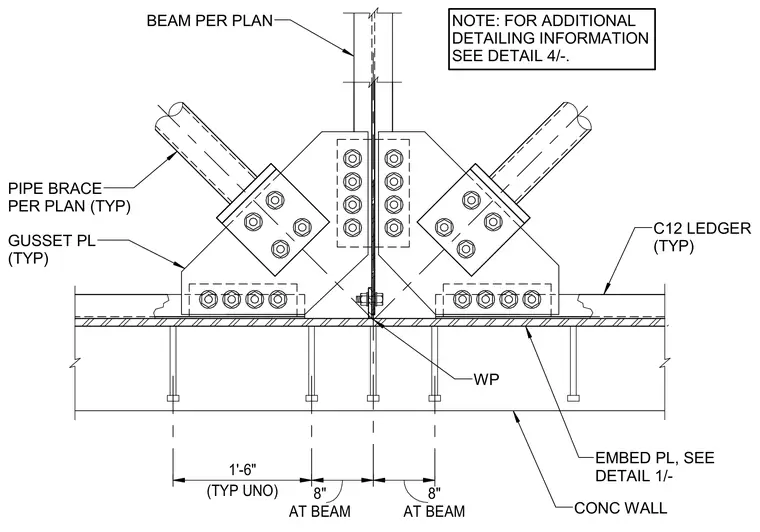

A pipe brace connection anchored to a concrete wall and a vertical beam per plan. Symmetrical pipe braces connect via bolted gusset plates mounted to a continuous C12 ledger and an embed plate cast into the concrete wall. Full-depth stiffener plates provide web reinforcement at the beam centerline, with additional detailing referenced elsewhere in the drawing set.
WP BEAM PER PLAN GUSSET PL (TYP) PIPE BRACE PER PLAN (TYP) CONC WALL EMBED PL, SEE DETAIL 1/- NOTE: FOR ADDITIONAL DETAILING INFORMATION SEE DETAIL 4/-. (TYP UNO) 1'-6" AT BEAM 8" AT BEAM 8" C12 LEDGER (TYP)
