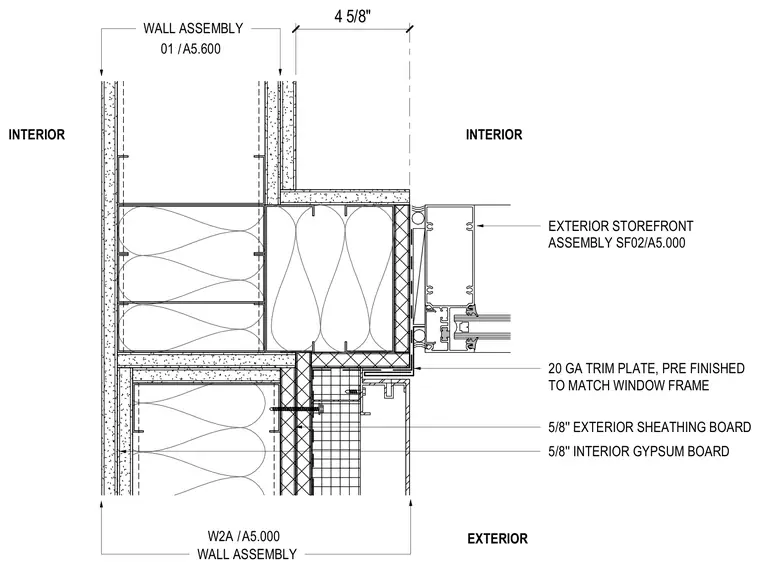

Corner junction between an exterior storefront assembly and a framed wall. The exterior wall is finished with five-eighths-inch interior gypsum board and five-eighths-inch exterior sheathing board over steel framing. A twenty-gauge pre-finished trim plate matches the window frame color at the transition. The storefront assembly abuts the wall construction with a four-and-five-eighths-inch dimensional offset.
INTERIOR EXTERIOR INTERIOR 20 GA TRIM PLATE, PRE FINISHED TO MATCH WINDOW FRAME 5/8'' EXTERIOR SHEATHING BOARD 5/8'' INTERIOR GYPSUM BOARD WALL ASSEMBLY / W2A A5.000 WALL ASSEMBLY / 01 A5.600 EXTERIOR STOREFRONT ASSEMBLY SF02/A5.000 4 5/8"
