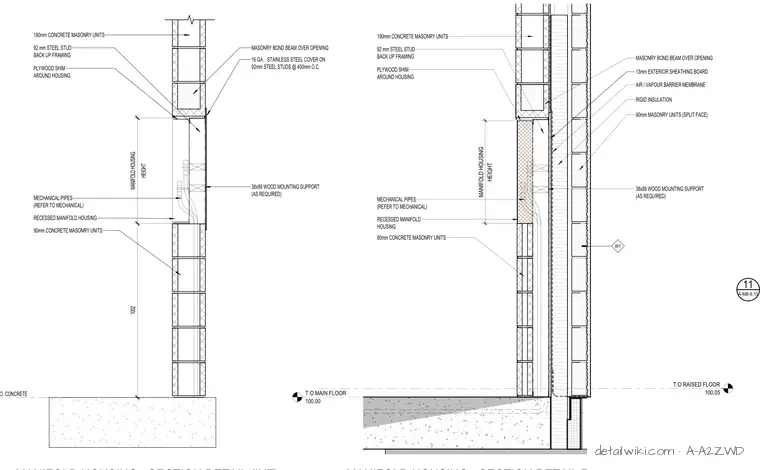

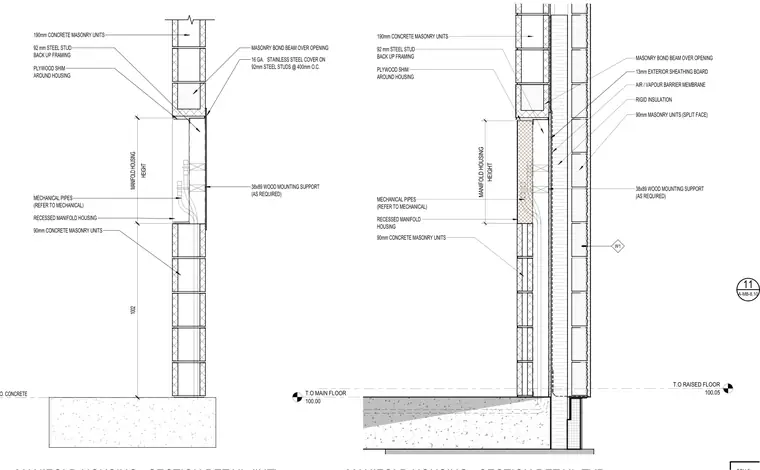

A recessed manifold housing is integrated into a 190 millimeter concrete masonry unit wall and a 92 millimeter cold-formed steel stud backup framing assembly. The housing is shimmed with plywood around the perimeter and mounted using thirty-eight by eighty-nine millimeter wood supports as required. A masonry bond beam spans over the opening. The exterior assembly incorporates a 16 gauge stainless steel cover, thirteen millimeter exterior sheathing board, an air and vapour barrier membrane, rigid insulation, and 90 millimeter split face masonry units. Mechanical pipes route through the housing interior.
T.O MAIN FLOOR 100.00 T.O RAISED FLOOR 100.05 92 mm STEEL STUD BACK UP FRAMING PLYWOOD SHIM AROUND HOUSING RECESSED MANIFOLD HOUSING 13mm EXTERIOR SHEATHING BOARD AIR / VAPOUR BARRIER MEMBRANE RIGID INSULATION 90mm MASONRY UNITS (SPLIT FACE) 190mm CONCRETE MASONRY UNITS MASONRY BOND BEAM OVER OPENING 90mm CONCRETE MASONRY UNITS 38x89 WOOD MOUNTING SUPPORT (AS REQUIRED) HEIGHT MANIFOLD HOUSING MECHANICAL PIPES (REFER TO MECHANICAL) W1 92 mm STEEL STUD BACK UP FRAMING PLYWOOD SHIM AROUND HOUSING RECESSED MANIFOLD HOUSING 16 GA. STAINLESS STEEL COVER ON 92mm STEEL STUDS @ 400mm O.C. 190mm CONCRETE MASONRY UNITS MASONRY BOND BEAM OVER OPENING 90mm CONCRETE MASONRY UNITS 38x89 WOOD MOUNTING SUPPORT (AS REQUIRED) MECHANICAL PIPES (REFER TO MECHANICAL) T.O. CONCRETE 1002 HEIGHT MANIFOLD HOUSING A-MB-8.10 11
