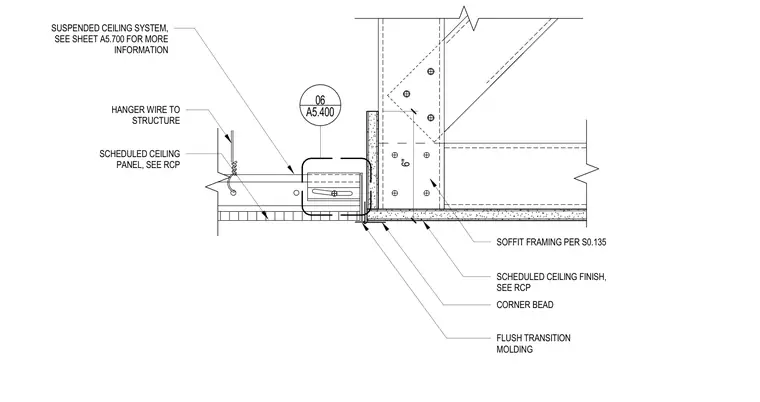

A suspended acoustic ceiling system connects to a gypsum board soffit framing assembly using a flush transition molding and a corner bead at the vertical drop. The acoustic ceiling panel is supported by hanger wires secured to the structure above. The soffit framing is installed per structural specifications alongside a scheduled ceiling finish. A detail reference bubble for sheet A5.400 is positioned above the junction.
SUSPENDED CEILING SYSTEM, SEE SHEET A5.700 FOR MORE INFORMATION HANGER WIRE TO STRUCTURE SCHEDULED CEILING PANEL, SEE RCP FLUSH TRANSITION MOLDING SCHEDULED CEILING FINISH, SEE RCP CORNER BEAD 6" SOFFIT FRAMING PER S0.135 06 A5.400
