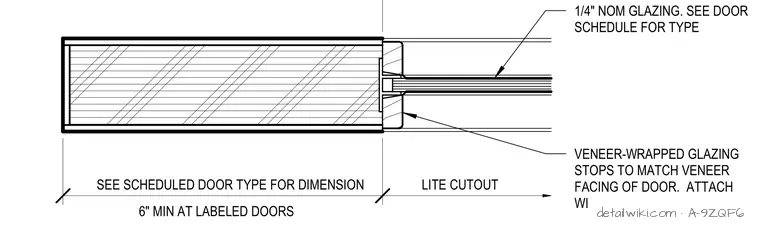

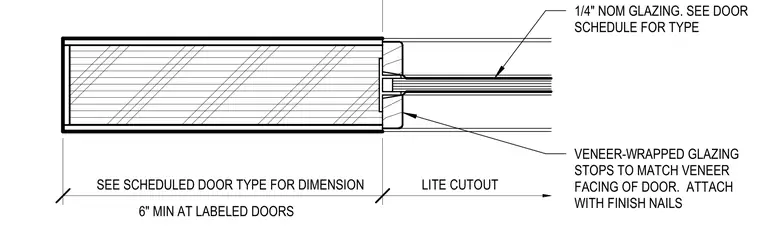

A horizontal section through a door lite assembly. Glazing is 1/4 inch nominal thickness, with the specific type referenced in the door schedule. Veneer-wrapped glazing stops matching the door face secure the glass and are attached using finish nails. A minimum 6-inch stile width is required at labeled doors, with lite cutout dimensions determined by the scheduled door type.
Text on the drawing
HOLLOW METAL DOOR A VENEER-WRAPPED GLAZING STOPS TO MATCH VENEER FACING OF DOOR. ATTACH WITH FINISH NAILS 1/4" NOM GLAZING. SEE DOOR SCHEDULE FOR TYPE LITE CUTOUT SEE SCHEDULED DOOR TYPE FOR DIMENSION 6" MIN AT LABELED DOORS EXPOSED GLAZING
