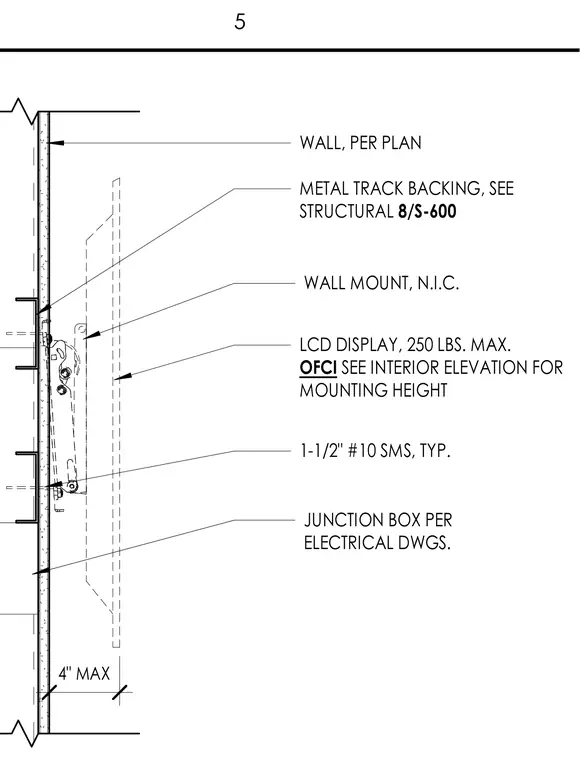

An owner-furnished, contractor-installed LCD display with a maximum weight of 250 pounds mounts to a wall assembly positioned per plan. The wall mount secures to concealed metal track backing with 1-1/2-inch number 10 sheet metal screws typical. A junction box is installed per electrical drawings behind the display location.
LCD DISPLAY, 250 LBS. MAX. OFCI SEE INTERIOR ELEVATION FOR MOUNTING HEIGHT JUNCTION BOX PER ELECTRICAL DWGS. WALL, PER PLAN WALL MOUNT, N.I.C. 1-1/2" #10 SMS, TYP. 4" MAX METAL TRACK BACKING, SEE STRUCTURAL 8/S-600 5
