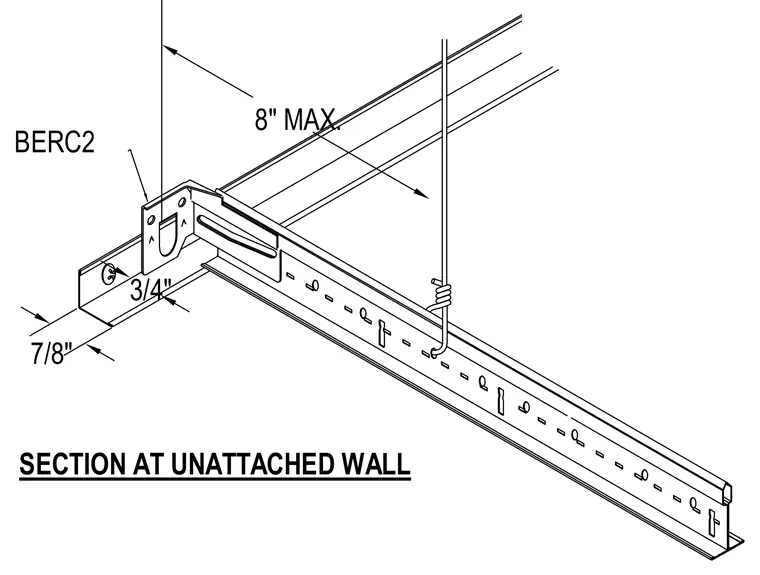

An acoustic ceiling grid runner terminates at an unattached wall angle identified as BERC2, positioned with a seven-eighths inch vertical clearance and three-quarters inch offset. A vertical hanger wire supports the main runner at a maximum distance of eight inches from the wall intersection. The wall angle secures to the partition framing with mechanical fasteners.
7/8" 8" MAX. 3/4" BERC2 SECTION AT UNATTACHED WALL
