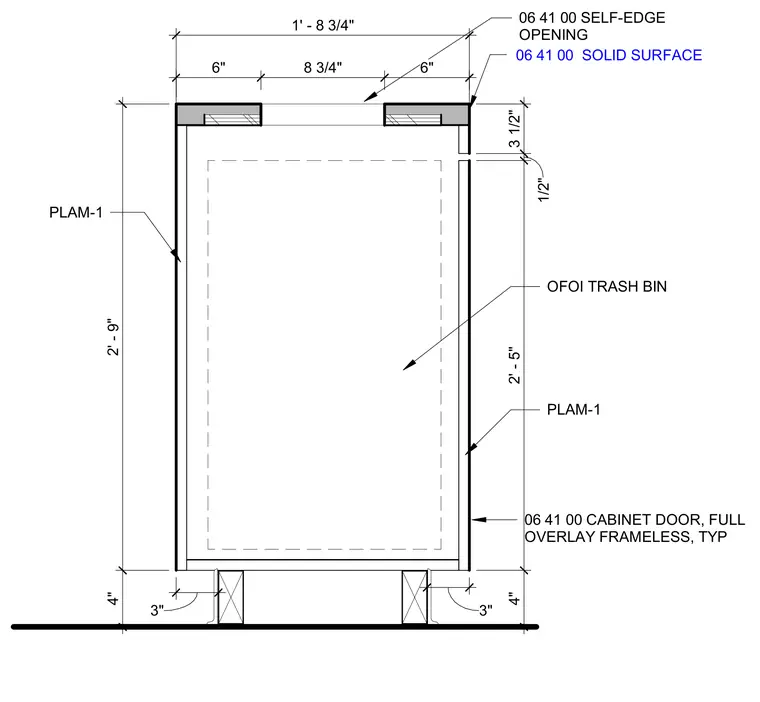

This built-in millwork trash receptacle features a plastic laminate finish designated as PLAM-1 over the entire exterior enclosure. The top incorporates a solid surface material with a self-edge opening measuring eight and three-quarters inches wide between six-inch solid surface margins. Access is provided via a typical full overlay frameless cabinet door on the front. The unit stands on four-inch recessed supports with three-inch offsets and houses an owner-furnished, owner-installed trash bin.
06 41 00 CABINET DOOR, FULL OVERLAY FRAMELESS, TYP 06 41 00 SELF-EDGE OPENING 6" 8 3/4" 6" OFOI TRASH BIN 3" 3" 06 41 00 SOLID SURFACE 1' - 8 3/4" 2' - 9" 4" 3 1/2" 1/2" 2' - 5" 4" PLAM-1 PLAM-1
