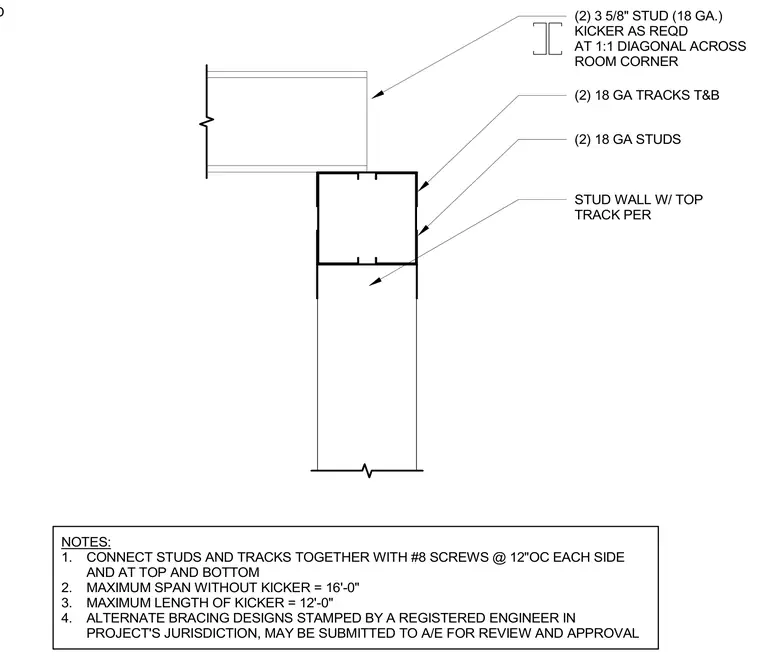

Cold-formed metal stud wall top track consists of two 18-gauge tracks at the top and bottom with two 18-gauge studs. A diagonal kicker brace made from two 3-5/8 inch 18-gauge studs is installed at a 1 to 1 diagonal ratio across the room corner as required. Studs and tracks are connected together using number 8 screws at 12 inches on center on each side and at the top and bottom. Maximum span without a kicker is 16 feet, and maximum length of the kicker is 12 feet. Alternate bracing designs stamped by a registered engineer in the project jurisdiction may be submitted for review and approval.
STUD WALL W/ TOP TRACK PER (2) 18 GA TRACKS T&B (2) 3 5/8" STUD (18 GA.) KICKER AS REQD AT 1:1 DIAGONAL ACROSS ROOM CORNER NOTES: 1. CONNECT STUDS AND TRACKS TOGETHER WITH #8 SCREWS @ 12"OC EACH SIDE AND AT TOP AND BOTTOM 2. MAXIMUM SPAN WITHOUT KICKER = 16'-0" 3. MAXIMUM LENGTH OF KICKER = 12'-0" 4. ALTERNATE BRACING DESIGNS STAMPED BY A REGISTERED ENGINEER IN PROJECT'S JURISDICTION, MAY BE SUBMITTED TO A/E FOR REVIEW AND APPROVAL (2) 18 GA STUDS CJ. CEMCO 093 OR APPROVED
