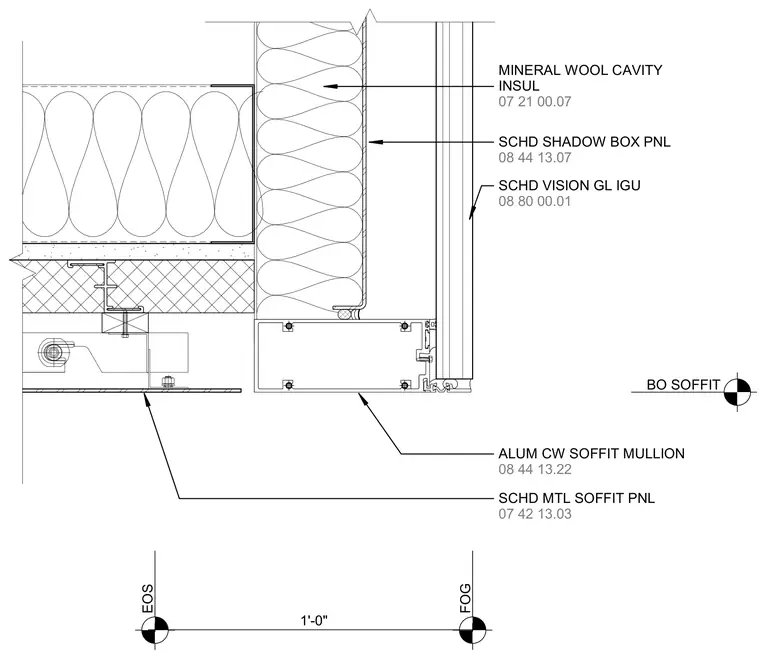

An aluminum curtain wall soffit mullion integrates with a scheduled vision glass insulated glazing unit and a scheduled shadow box panel. Mineral wool cavity insulation fills the wall cavity behind the shadow box panel. Below the assembly, a scheduled metal soffit panel ties into the aluminum curtain wall soffit mullion.
FOG BO SOFFIT EOS 1'-0" 08 44 13.22 ALUM CW SOFFIT MULLION 07 42 13.03 SCHD MTL SOFFIT PNL 08 80 00.01 SCHD VISION GL IGU 07 21 00.07 MINERAL WOOL CAVITY INSUL 08 44 13.07 SCHD SHADOW BOX PNL
