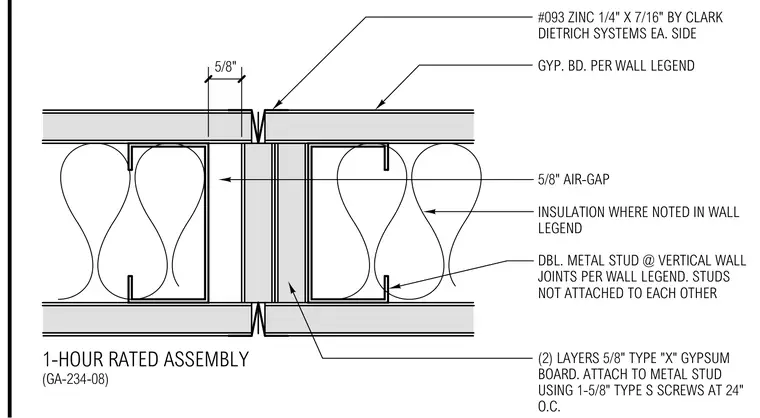

This one-hour rated assembly features a double metal stud configuration at vertical wall joints where the studs remain unattached to each other with a 5/8-inch air-gap. Each side receives gypsum board per the wall legend, with optional insulation where noted. A number 093 zinc 1/4-inch by 7/16-inch control joint by ClarkDietrich Systems is installed on each side. Two layers of 5/8-inch Type X gypsum board attach to the metal studs using 1-5/8-inch Type S screws spaced at 24 inches on center.
1-HOUR RATED ASSEMBLY (GA-234-08) 5/8" #093 ZINC 1/4" X 7/16" BY CLARK DIETRICH SYSTEMS EA. SIDE GYP. BD. PER WALL LEGEND 5/8" AIR-GAP INSULATION WHERE NOTED IN WALL LEGEND DBL. METAL STUD @ VERTICAL WALL JOINTS PER WALL LEGEND. STUDS NOT ATTACHED TO EACH OTHER (2) LAYERS 5/8" TYPE "X" GYPSUM BOARD. ATTACH TO METAL STUD USING 1-5/8" TYPE S SCREWS AT 24" O.C.
