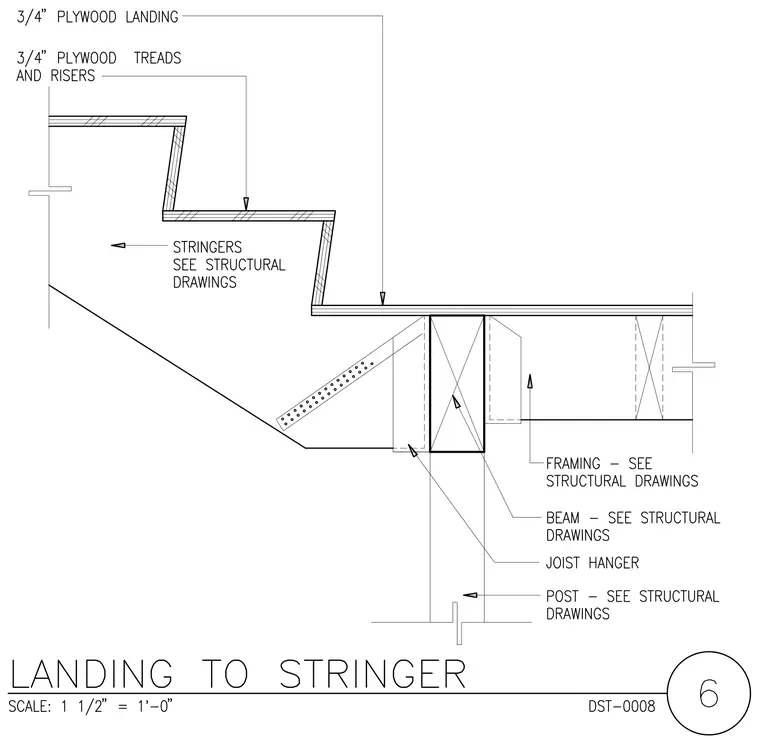

A stair landing connects to its supporting structural framework. The assembly consists of three-quarter-inch plywood landing, treads, and risers. The stringers, framing, beam, and post are sized per the structural drawings. A joist hanger supports the beam framing condition.
