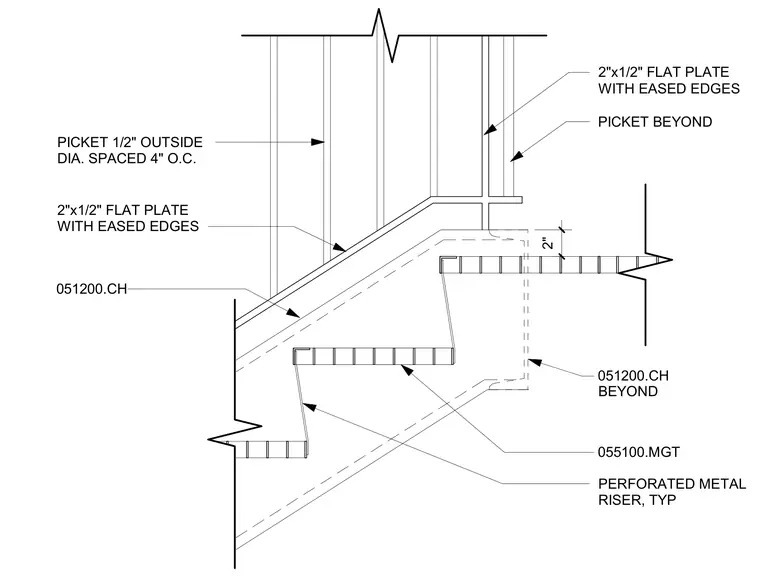

Transition from an inclined stair run to an intermediate landing with integrated guardrail framing. The assembly features perforated metal risers typical at each step and structural channel stringers. The guardrail consists of a two-inch by one-half-inch flat plate with eased edges serving as the top rail and handrail support, paired with one-half-inch outside diameter pickets spaced at four inches on center.
2"x1/2" FLAT PLATE WITH EASED EDGES 2"x1/2" FLAT PLATE WITH EASED EDGES PICKET 1/2" OUTSIDE DIA. SPACED 4" O.C. 051200.CH 051200.CH BEYOND 055100.MGT PERFORATED METAL RISER, TYP 2" PICKET BEYOND
