This interior partition head detail utilizes a deflection track attached with anchors at the top of cold-formed steel studs. The gypsum board remains unattached to the deflection track to accommodate structural movement. Multiple layers of five-eighths-inch gypsum board are fastened to both sides of the studs, with fire-rated assemblies specifying a base layer applied with one-inch Type S drywall screws and a face layer applied with one-and-five-eighths-inch Type S drywall screws at twelve inches on center. The stud cavity is filled with acoustics insulation, and joints are caulked and sealed air-tight on both sides at the top and bottom. Ceilings abut the partition per reflected ceiling plan types and heights.

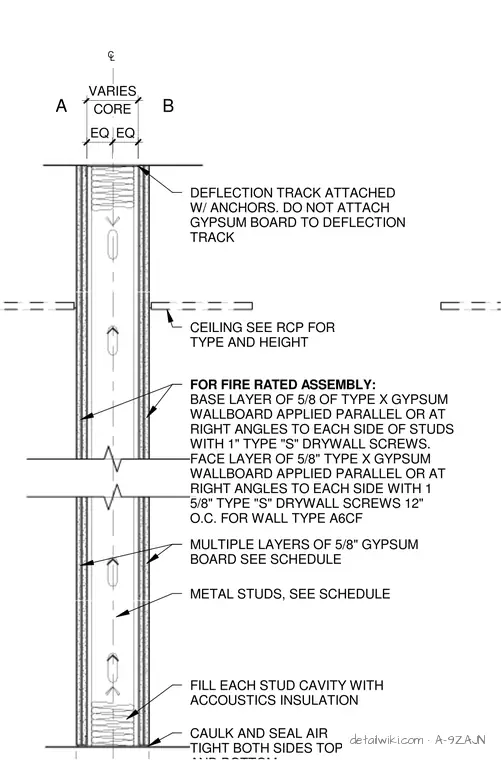

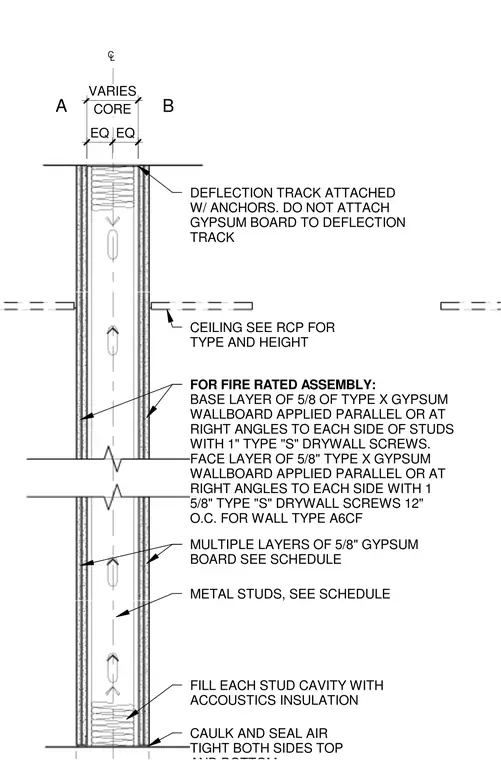

CL CEILING SEE RCP FOR TYPE AND HEIGHT CAULK AND SEAL AIR TIGHT BOTH SIDES TOP FILL EACH STUD CAVITY WITH ACCOUSTICS INSULATION METAL STUDS, SEE SCHEDULE MULTIPLE LAYERS OF 5/8" GYPSUM BOARD SEE SCHEDULE EQ EQ CORE VARIES DEFLECTION TRACK ATTACHED W/ ANCHORS. DO NOT ATTACH GYPSUM BOARD TO DEFLECTION TRACK FOR FIRE RATED ASSEMBLY: BASE LAYER OF 5/8 OF TYPE X GYPSUM WALLBOARD APPLIED PARALLEL OR AT RIGHT ANGLES TO EACH SIDE OF STUDS WITH 1" TYPE "S" DRYWALL SCREWS. FACE LAYER OF 5/8" TYPE X GYPSUM WALLBOARD APPLIED PARALLEL OR AT RIGHT ANGLES TO EACH SIDE WITH 1 5/8" TYPE "S" DRYWALL SCREWS 12" O.C. FOR WALL TYPE A6CF A B
