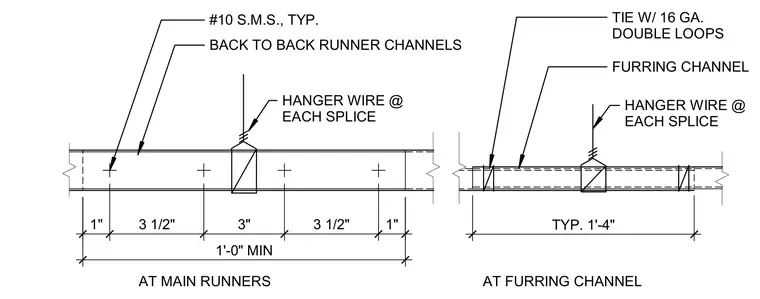

The suspended ceiling assembly features back-to-back runner channels spliced with a minimum one-foot overlap, fastened using number ten sheet metal screws typically spaced at one inch, three and a half inches, and three inches. Hanger wire wraps each main runner splice. Furring channels are likewise suspended with hanger wires at each splice and tied with sixteen-gauge double loops.
1" 3 1/2" 3" 3 1/2" 1" TYP. 1'-4" AT MAIN RUNNERS AT FURRING CHANNEL #10 S.M.S., TYP. BACK TO BACK RUNNER CHANNELS HANGER WIRE @ EACH SPLICE TIE W/ 16 GA. DOUBLE LOOPS FURRING CHANNEL HANGER WIRE @ EACH SPLICE 1'-0" MIN
