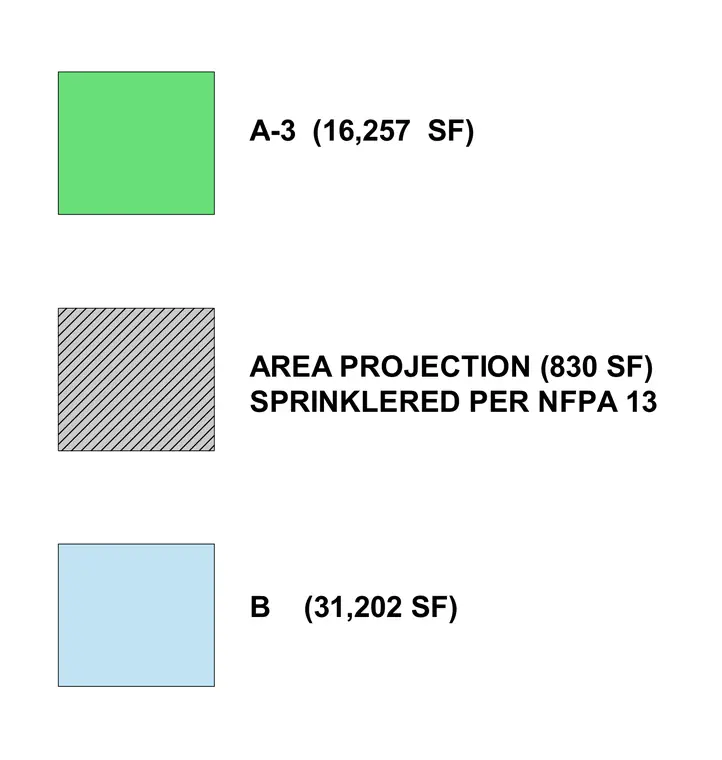

Building area projections outline specific square footage allocations for different occupancy types and project areas. The diagram details an area projection of 830 square feet noted as sprinklered per NFPA 13, alongside occupancy classifications B at 31,202 square feet and A-3 at 16,257 square feet.
