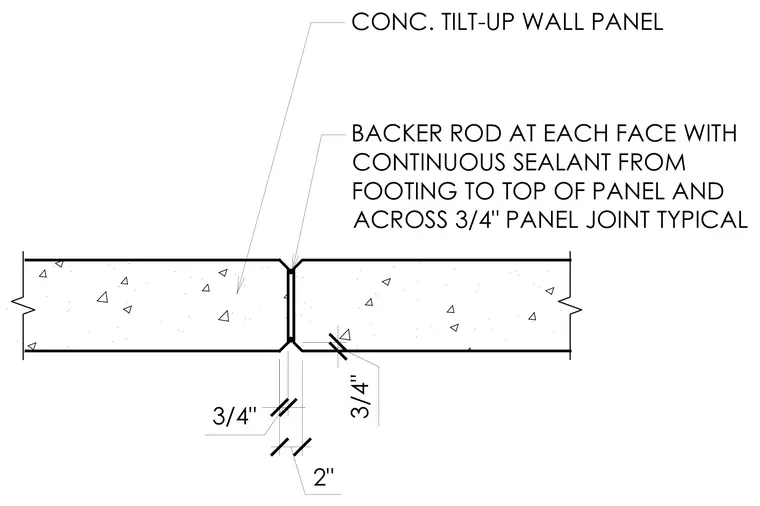

Adjacent concrete tilt-up wall panels form a three-quarter-inch vertical joint featuring a backer rod at each face with continuous sealant running from the footing to the top of the panel.
BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL CONC. TILT-UP WALL PANEL 3/4" 2" 3/4"
