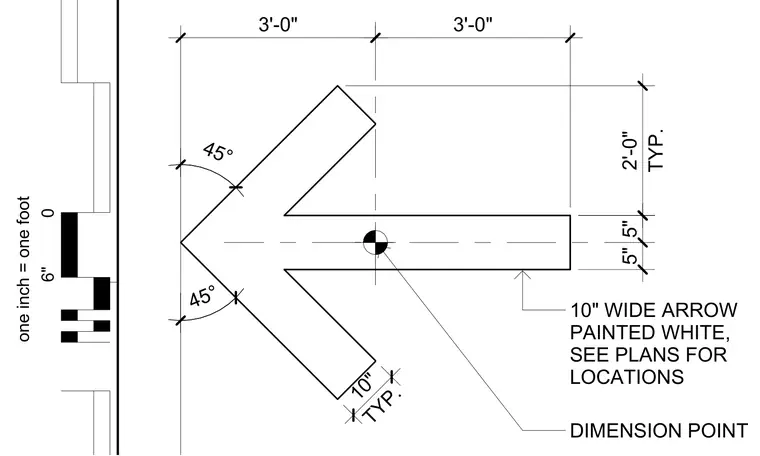

A ten-inch wide painted white arrow features forty-five-degree angled tips and an overall length defined by three-foot increments. A designated dimension point is located at the center of the arrow shaft. Locations are determined per the site or floor plans.
3'-0" 3'-0" TYP. 10" 45° 45° 5" 5" TYP. 2'-0" DIMENSION POINT 10" WIDE ARROW PAINTED WHITE, SEE PLANS FOR LOCATIONS one inch = one foot 0 6"
