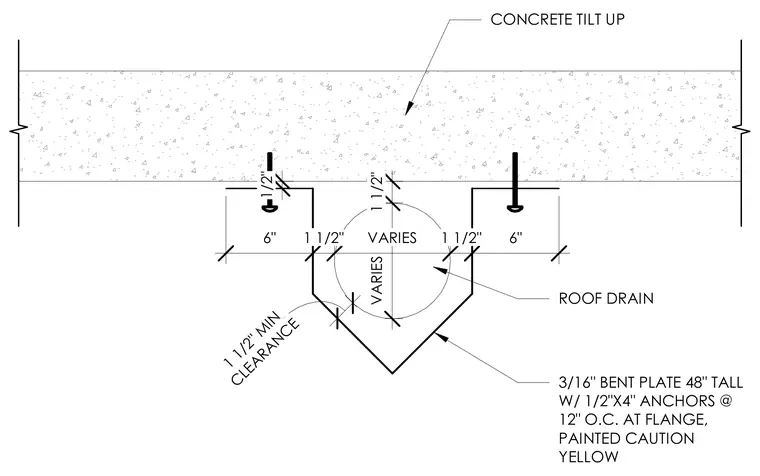

A roof drain is protected by a forty-eight-inch tall three-sixteenths-inch bent steel plate mounted against a concrete tilt-up wall. The plate features flanges secured with one-half-inch by four-inch anchors at twelve inches on center and is finished with a painted caution yellow coating. A variable clearance of one and one-half inches minimum is maintained around the drain assembly.
ROOF DRAIN 3/16" BENT PLATE 48" TALL W/ 1/2"X4" ANCHORS @ 12" O.C. AT FLANGE, PAINTED CAUTION YELLOW CONCRETE TILT UP VARIES 1 1/2" CLEARANCE 1 1/2" MIN 1/2" 6" 1 1/2" VARIES 1 1/2" 6"
