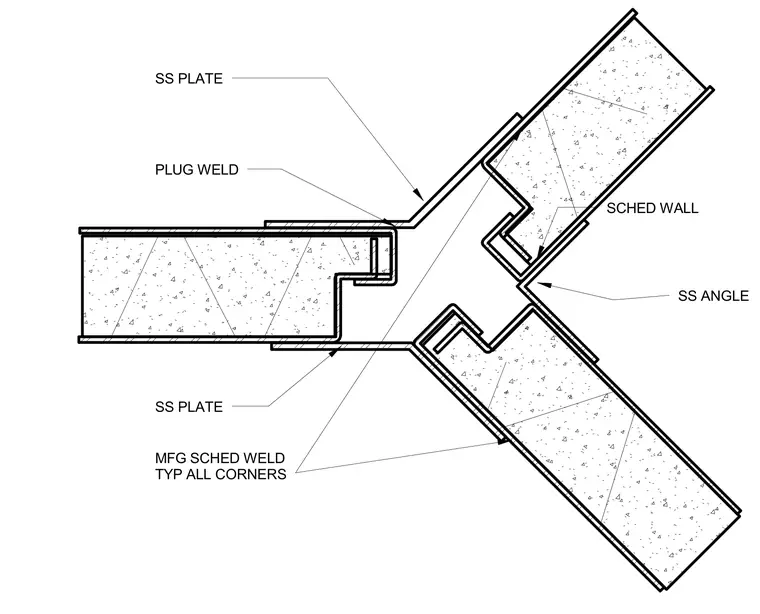

Stainless steel plates and a stainless steel angle form an intersection between scheduled walls. The walls connect to the metal plates using manufacturer-scheduled welds typically applied at all corners. A plug weld secures the connection at the wall end. The assembly provides a rigid structural junction for specific wall configurations.
