A flexible fire sprinkler head drop utilizes a corrugated stainless steel hose with a stainless steel braid connected to the main water line. The assembly fastens to metal joists or wood joists through a galvanized sheet metal adjustable hub secured with self-tapping sheet metal screws. The sprinkler head penetrates a gypsum board ceiling and is supported by an adjustable bracket clamped to the ceiling framing. All flexible sprinkler components must come from a single manufacturer such as Flexhead Industries, with hose length determined by the fire sprinkler contractor.

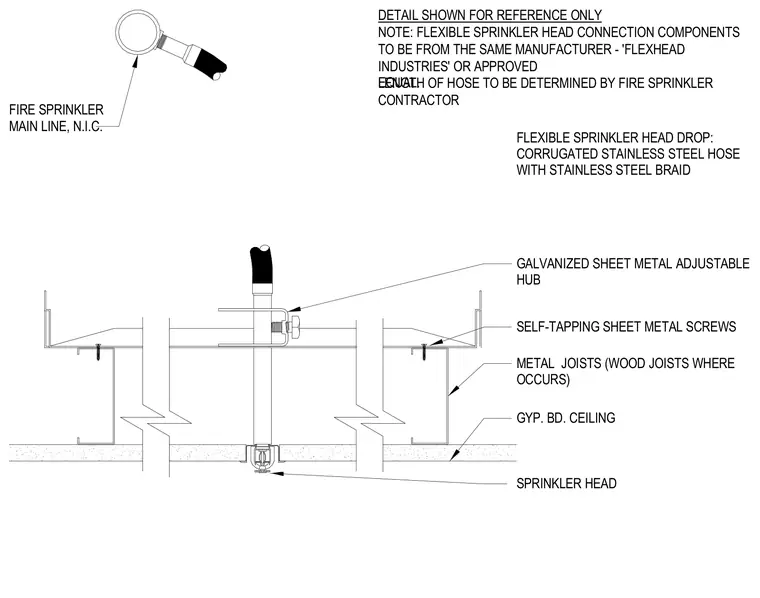

FLEXIBLE SPRINKLER HEAD DROP: CORRUGATED STAINLESS STEEL HOSE WITH STAINLESS STEEL BRAID DETAIL SHOWN FOR REFERENCE ONLY NOTE: FLEXIBLE SPRINKLER HEAD CONNECTION COMPONENTS TO BE FROM THE SAME MANUFACTURER - 'FLEXHEAD INDUSTRIES' OR APPROVED EQUAL. LENGTH OF HOSE TO BE DETERMINED BY FIRE SPRINKLER CONTRACTOR SELF-TAPPING SHEET METAL SCREWS GALVANIZED SHEET METAL ADJUSTABLE HUB METAL JOISTS (WOOD JOISTS WHERE OCCURS) GYP. BD. CEILING SPRINKLER HEAD FIRE SPRINKLER MAIN LINE, N.I.C.
