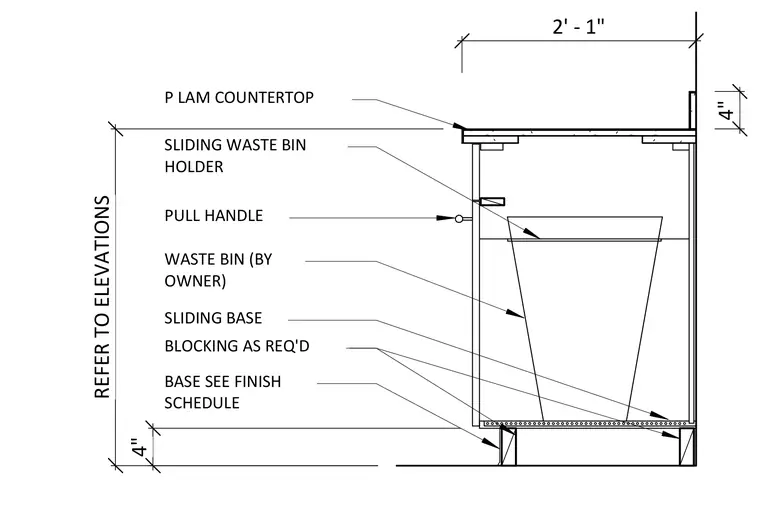

A plastic laminate countertop surmounts the base cabinet framing, backed by required wood blocking and a four-inch backsplash. A sliding waste bin holder supports an owner-provided waste bin on a sliding base with a pull handle. The cabinet base sits on a four-inch toe kick with the finish specified in the finish schedule.
4" REFER TO ELEVATIONS 4" 2' - 1" BASE SEE FINISH SCHEDULE BLOCKING AS REQ'D WASTE BIN (BY OWNER) P LAM COUNTERTOP SLIDING WASTE BIN HOLDER SLIDING BASE PULL HANDLE
