A mechanical duct passes through a scheduled partition, requiring continuous acoustical sealant at the gap between the duct and partition assembly. Any gap larger than one-half inch must be covered with gypsum board lapped a minimum of two inches and screwed in place before applying the acoustical sealant. Thermal insulation is provided where indicated on the drawings.

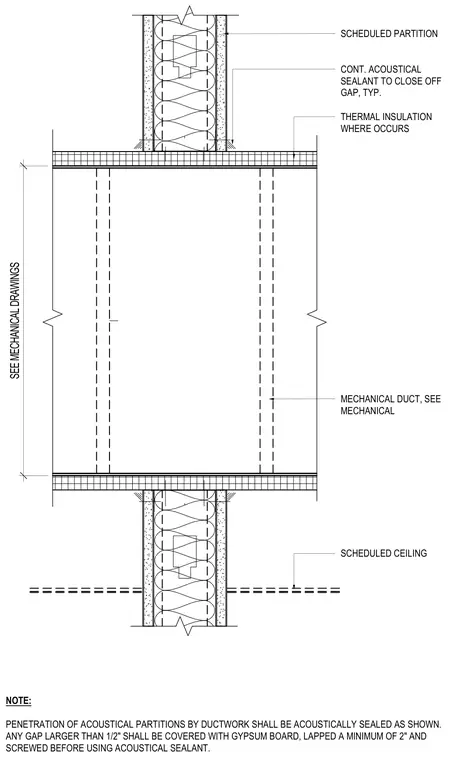

SEE MECHANICAL DRAWINGS SCHEDULED PARTITION THERMAL INSULATION WHERE OCCURS CONT. ACOUSTICAL SEALANT TO CLOSE OFF GAP, TYP. MECHANICAL DUCT, SEE MECHANICAL SCHEDULED CEILING NOTE: PENETRATION OF ACOUSTICAL PARTITIONS BY DUCTWORK SHALL BE ACOUSTICALLY SEALED AS SHOWN. ANY GAP LARGER THAN 1/2" SHALL BE COVERED WITH GYPSUM BOARD, LAPPED A MINIMUM OF 2" AND SCREWED BEFORE USING ACOUSTICAL SEALANT.
