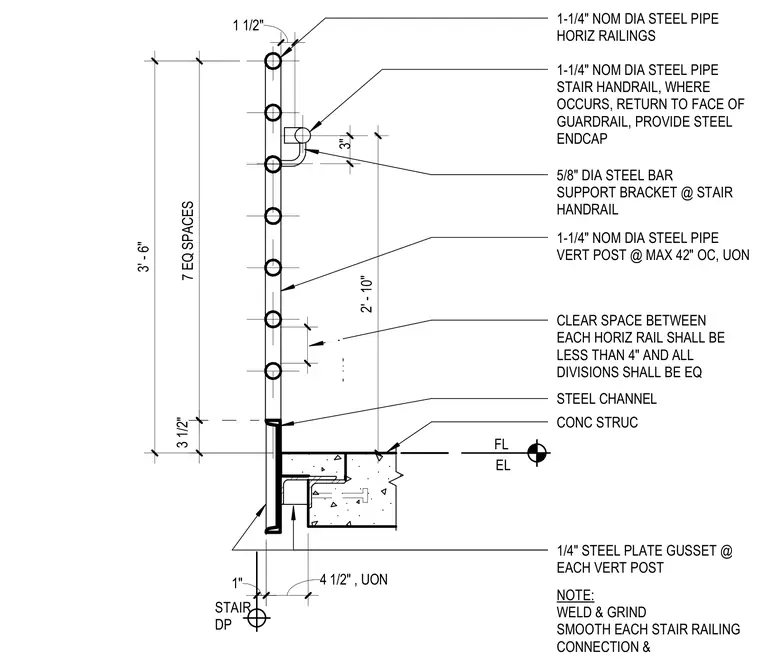

A stair guardrail and handrail assembly is anchored to a structural concrete floor. Vertical one-and-one-quarter-inch nominal diameter steel pipe posts are spaced at a maximum of forty-two inches on center unless otherwise noted, rising from a steel channel embedded at the concrete slab edge. A quarter-inch steel plate gusset is provided at each vertical post. Seven equal spaces of horizontal one-and-one-quarter-inch nominal diameter steel pipe rails maintain a clear space of less than four inches between divisions. A stair handrail constructed of one-and-one-quarter-inch nominal diameter steel pipe is supported by a five-eighths-inch diameter steel bar bracket returning to the face of the guardrail with a steel endcap. All stair railing connections are welded and ground smooth.
STAIR DP 1-1/4" NOM DIA STEEL PIPE HORIZ RAILINGS 1-1/4" NOM DIA STEEL PIPE STAIR HANDRAIL, WHERE OCCURS, RETURN TO FACE OF GUARDRAIL, PROVIDE STEEL ENDCAP 5/8" DIA STEEL BAR SUPPORT BRACKET @ STAIR HANDRAIL FL EL 7 EQ SPACES 1-1/4" NOM DIA STEEL PIPE VERT POST @ MAX 42" OC, UON CLEAR SPACE BETWEEN EACH HORIZ RAIL SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ STEEL CHANNEL 1/4" STEEL PLATE GUSSET @ EACH VERT POST NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & 1" 3" 1 1/2" CONC STRUC 3' - 6" 3 1/2" 2' - 10" 4 1/2" , UON 3 7/8" .
