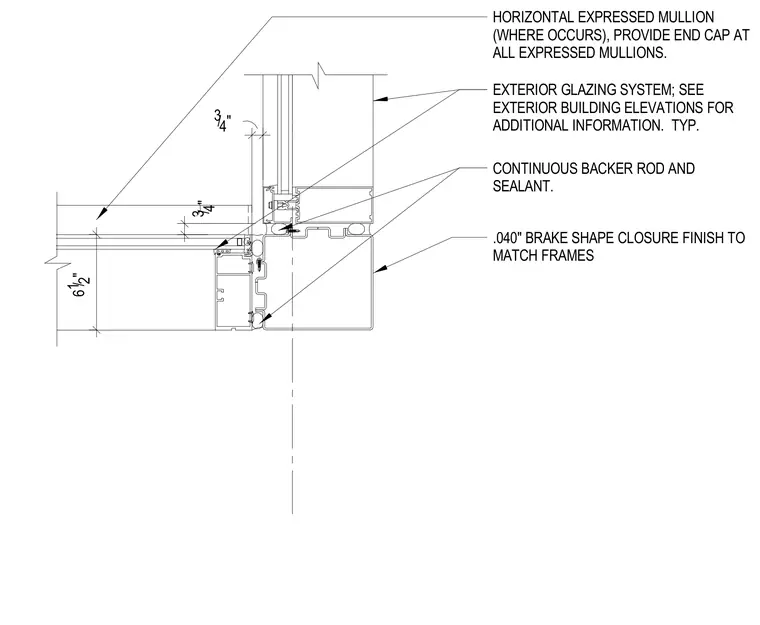

An exterior glazing system meets at an inside corner with a horizontal expressed mullion measuring 6 1/2 inches vertically. A .040-inch brake shape closure finish matches the window frames. Continuous backer rod and sealant are provided at the joints. End caps are required at all expressed mullions.
61/2" 3/4" 3/4" CONTINUOUS BACKER ROD AND SEALANT. EXTERIOR GLAZING SYSTEM; SEE EXTERIOR BUILDING ELEVATIONS FOR ADDITIONAL INFORMATION. TYP. HORIZONTAL EXPRESSED MULLION (WHERE OCCURS), PROVIDE END CAP AT ALL EXPRESSED MULLIONS. .040" BRAKE SHAPE CLOSURE FINISH TO MATCH FRAMES
