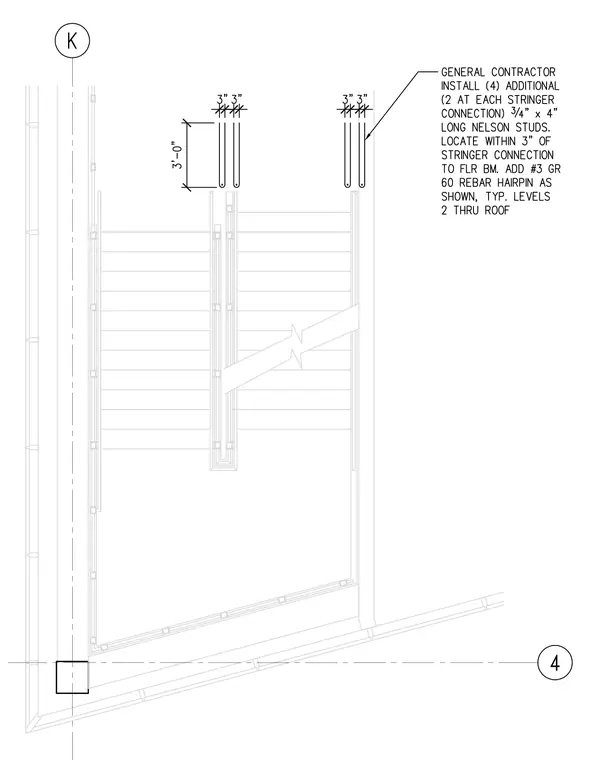

The general contractor installs four additional three-quarter-inch by four-inch long Nelson studs at each stringer connection, positioned within three inches of the stringer connection to the floor beam. One additional number three grade sixty rebar hairpin is added as shown, typically at levels two through the roof.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
