A six-inch by forty-three mil continuous sheet metal backing plate spans a minimum of three studs within a metal framing wall assembly. Two number eight pancake head self-drilling screws secure the backing plate at each stud location, with fasteners staggered at double studs. A maximum half-inch dimension is maintained typically for fastener placement.

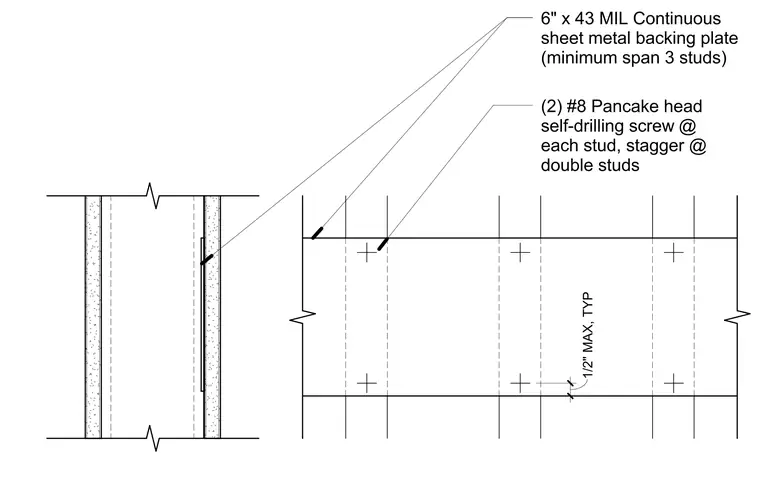

6" x 43 MIL Continuous sheet metal backing plate (minimum span 3 studs) (2) #8 Pancake head self-drilling screw @ each stud, stagger @ double studs 1/2" MAX, TYP
