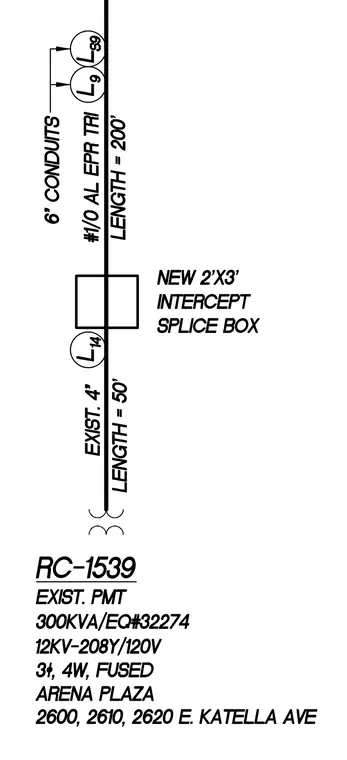

An existing pad-mounted transformer rated at 300 kVA, 12 kV to 208Y/120V, 3-phase, 4-wire, fused, located at Arena Plaza (2600, 2610, 2620 E. Katella Ave), feeds an electrical run that spans a 200-foot length utilizing six-inch conduits with #1/0 aluminum ethylene propylene rubber triplex conductors. The run passes through a new 2-foot by 3-foot intercept splice box before transitioning into an existing 4-inch conduit with a length of 50 feet.
