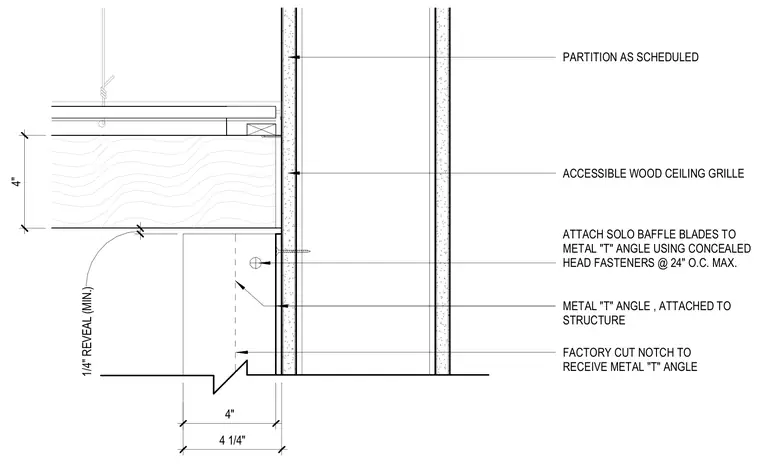

An accessible wood ceiling grille system meets a wall partition with a four-inch vertical drop and a quarter-inch minimum reveal. Solo baffle blades feature a factory-cut notch to receive a metal tee angle attached directly to the overhead structure. The baffle blades fasten to the metal tee angle using concealed head fasteners spaced at a maximum of twenty-four inches on center. A partition as scheduled finishes the adjoining wall assembly.
4" 4" 4 1/4" 1/4" REVEAL (MIN.) ATTACH SOLO BAFFLE BLADES TO METAL "T" ANGLE USING CONCEALED HEAD FASTENERS @ 24" O.C. MAX. METAL "T" ANGLE , ATTACHED TO STRUCTURE FACTORY CUT NOTCH TO RECEIVE METAL "T" ANGLE PARTITION AS SCHEDULED ACCESSIBLE WOOD CEILING GRILLE
