A continuous sheet of reinforced membrane wraps around the roof curb or is formed from coated metal, bonded with adhesive over rigid insulation. Seam fastening plates secure the membrane base, and cut-edge sealant is applied along the perimeter. A metal cap or counter flashing is installed at the top of the curb and fastened twelve inches on center.

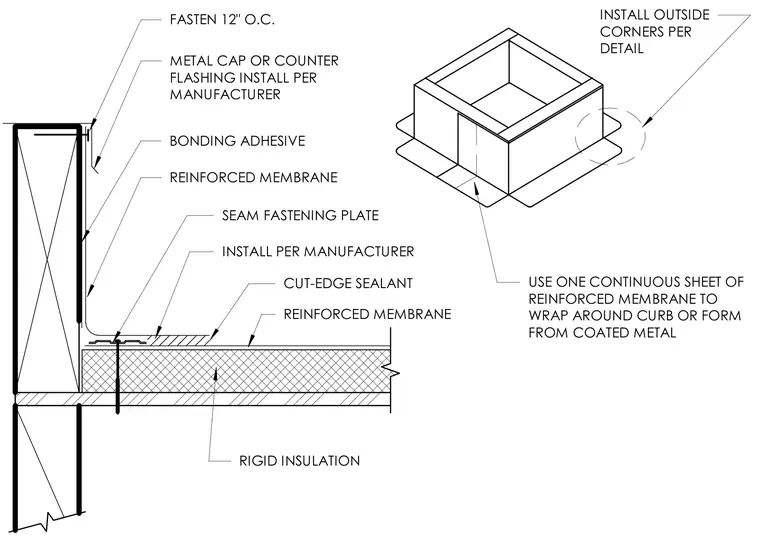

INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL
