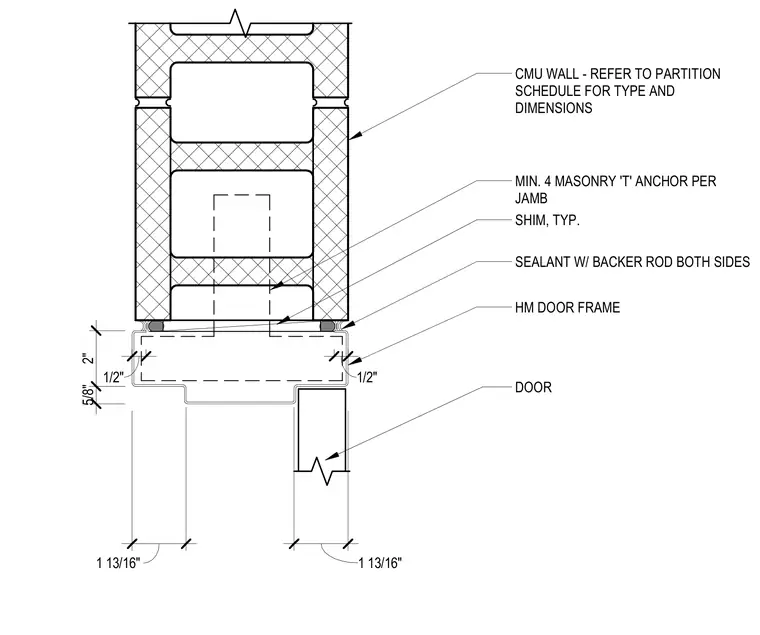

A hollow metal door frame connects to a concrete masonry unit wall of a type and dimension specified in the partition schedule. A minimum of four masonry T-anchors per jamb secure the frame. Shims are placed typically at the jamb connection. Sealant with a backer rod is applied to both sides of the joint between the frame and the masonry wall.
CMU WALL - REFER TO PARTITION SCHEDULE FOR TYPE AND DIMENSIONS MIN. 4 MASONRY 'T' ANCHOR PER JAMB SHIM, TYP. SEALANT W/ BACKER ROD BOTH SIDES HM DOOR FRAME DOOR 5/8" 2" 1/2" 1/2" 1 13/16" 1 13/16"
