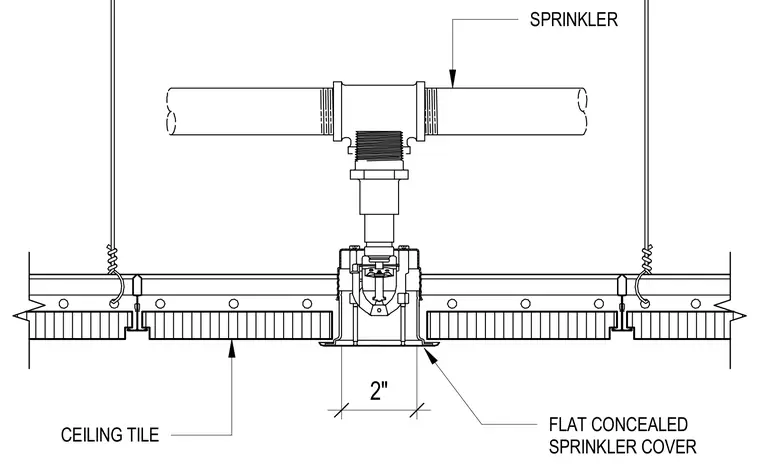

A flat concealed sprinkler cover sits flush with the underside of a 2-inch ceiling tile opening, concealing the sprinkler head mounted above. The fire protection piping connects to a threaded tee and drop nipple suspended by hanger wire from the structure above. The sprinkler assembly aligns precisely with the ceiling plane to maintain a clean architectural finish.
