A-9XW9A — Exp Joint - Insul Metal Panel

Architectural · A-9XW9A

Exp Joint - Insul Metal Panel

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A502
Discipline: Architectural

Materials

Aluminum Membrane / Roofing Metal (misc.)Steel

Elements

Connections / Plates Expansion / Control Joints Facades / Cladding Insulation Walls Waterproofing / Flashing

Connections

Expansion / Slip Connection

Text on the drawing

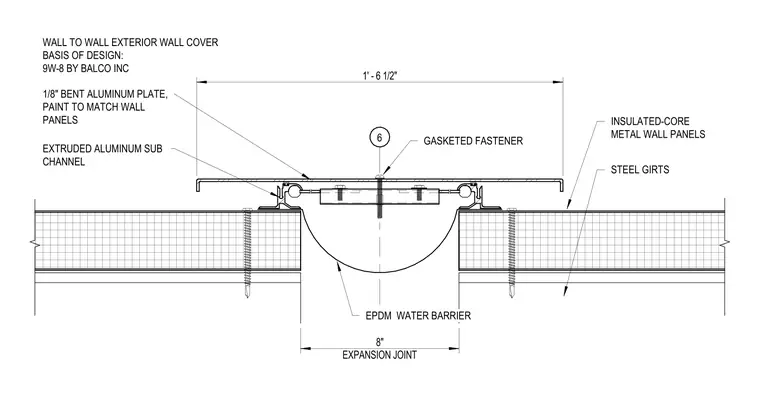

1/8" BENT ALUMINUM PLATE, PAINT TO MATCH WALL PANELS WALL TO WALL EXTERIOR WALL COVER BASIS OF DESIGN: 9W-8 BY BALCO INC EPDM WATER BARRIER INSULATED-CORE METAL WALL PANELS EXPANSION JOINT 8" 1' - 6 1/2" STEEL GIRTS EXTRUDED ALUMINUM SUB CHANNEL GASKETED FASTENER 6
