Architectural · A-9XTFR

Door Sill Detail at Terrace Door

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)

Elements

Beams Walls Doors Curtain Walls Floors / Slabs Drainage Anchors / Embeds Connections / Plates

About this detail

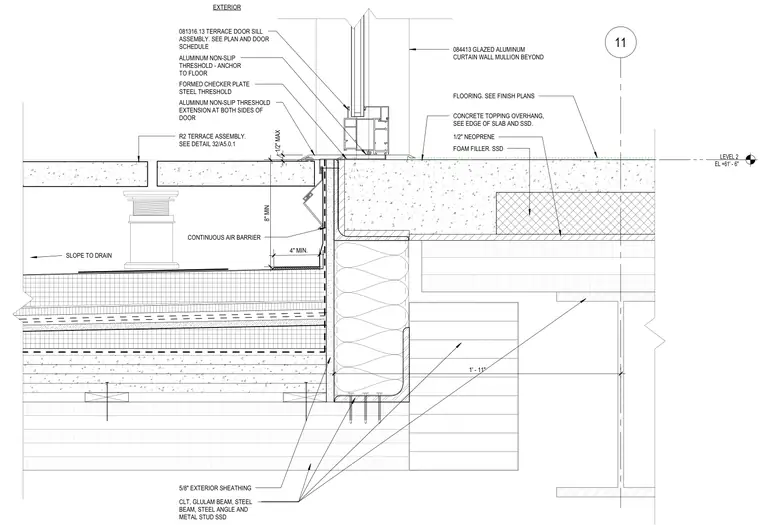

A terrace door sill assembly is set at Level 2 elevation plus sixty-one feet and six inches. The exterior terrace features a slope to drain with a four-inch minimum depth over an R2 terrace assembly, meeting an aluminum non-slip threshold anchored to the floor. A formed checker plate steel threshold and a maximum one-half-inch aluminum non-slip threshold extension span both sides of the door. The interior floor transition incorporates a concrete topping overhang, flooring per finish plans, one-half-inch neoprene, and foam filler over mass timber elements including cross-laminated timber, glulam beams, steel beams, steel angles, and metal stud structural steel stud framing. The assembly includes five-eighths-inch exterior sheathing, a continuous air barrier, and a glazed aluminum curtain wall mullion positioned beyond.
