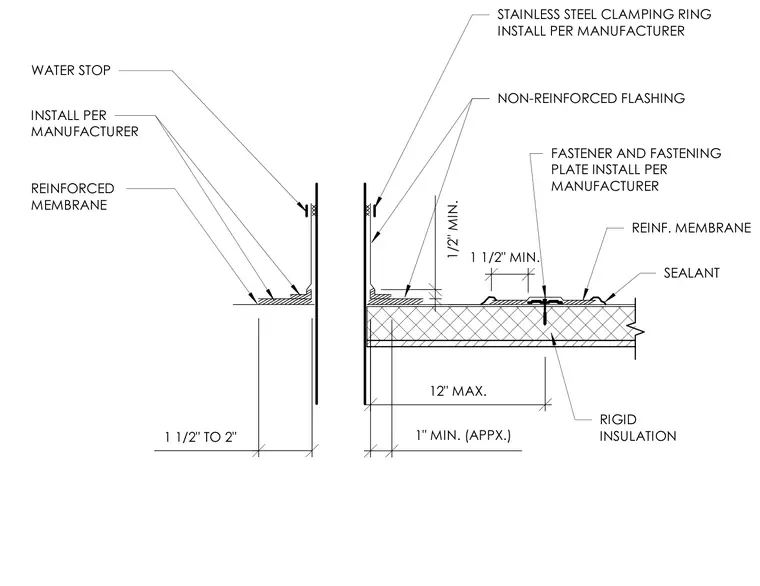

A base flashing system is installed over rigid insulation with a reinforced membrane and non-reinforced flashing. Fasteners and fastening plates secure the assembly at a maximum twelve-inch spacing with a one-inch minimum edge distance. A water stop is integrated into the vertical surface, secured with a stainless steel clamping ring. Sealant is applied at terminations per manufacturer specifications.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION BASE FLASHING SYSTEM
